Flap Gate Valve
Usually placed at the end of pipelines or culverts, a flap valve (also known as a flap gate) is a one-way, self-acting valve that permits fluid (such as water or sewage) to depart while automatically stopping backflow. To keep out intruders like trash or tidal water, it has a hinged disk or door that opens under direct flow pressure and closes under gravity or reverse pressure.
PetroSan is one of the high quality leak proof manufacturer and fabricators of Flap Valve for Drain pipe, Waterman Flap Valve, Flap Valve manufacturers in India, Flap valve mechanism, Pipe Flap Valve, Clow flap valve, Flap valve cost, 4 Flap valve, Check flap valves, Isolation flap valves, Regulating flap valves, Spring-loaded flap valves, Weighted flap valves, Pneumatic flap valves, Hydraulic flap valves.
PetroSan are leading manufacturer of high-quality Carbon steel & stainless steel flap valves, designed to meet the stringent demands of various industries. Our team of skilled engineers and technicians use premium materials and advanced manufacturing techniques to produce valves that excel in performance, durability, and reliability. With a focus on innovation and customer satisfaction, we offer customized solutions tailored to specific requirements, ensuring seamless integration and optimal performance in diverse applications. Our commitment to quality, competitive pricing, and timely delivery has earned us a reputation as a trusted partner among clients across the globe.
This substance is used for tide control, water control, and flood reduction. By stopping flood water from going backward, flap valves allow one-way flow. It is built with a flange and wall-mounted orientation in the following shape and types .
PetroSan manufacture flap gate valve in the shapes :
A) Circular shape.
B) Square shape.
C) Rectangular shape.
PetroSan manufacture flap gate valve in the Types:
Flap gate valves Specifications:
Opening dimensions and pressure level
- DN 100 – 2000.
- Dimension 150 × 150 mm up to 3000 × 300 mm.
- Selectable pressure level on the front: 2-10 mwc.
Flap
- Straight flap lid (standard) reinforced by sheet metal ribs according to static requirements.
- All welded stainless steel parts with perfect corrosion protection from our own pickling plant.
- Steel parts coated 320 µm.
- Replaceable wearing parts and seal (EPDM/NBR).
Materials
- Stainless steel : 1.4301 (304) / 1.4404 (316L) / 1.4410 (507) / 1.4462 (318LN).
– 304 (SS304): general-purpose, corrosion-resistant (Cr 18%, Ni 8%).
– 316 (SS316): marine-grade, high corrosion resistance (Cr 16%, Ni 10%, Mo 2%).
– 316L (SS316L): low-carbon version of 316, better corrosion resistance.
– Duplex (e.g., 2205): high-strength, corrosion-resistant (Cr 22%, Ni 5%, Mo 3%).
– Super Duplex (e.g., 2507): high-strength, high corrosion resistance (Cr 25%, Ni 7%, Mo 4%). - Carbon Steel : ASTM A36, ASTM A516 GRADE 60, 70 coated 320 µm.
Tightness class
- Leakage rate to DIN 19569, Part 4, Table 1: Pressure at front: 0.05 to 0.1 l · s-1 · m-1 (tightness class 3).
- Pressure-tight from 1.5 times DN.
Mounting options
- Dowelling into the structure.
- Casting in concrete.
- Mounted on a pipe flange with hole pattern PN10.
Optional: Other hole pattern possible.
Scope of supply
- Flap valve complete with all required fastening elements (dowels and sealing material).
Variants
- Flat valve at the outside water level below the pipe base.
- Flat valve with counterweight at low drainage pressure.
- Flap valve with counterweight.
- Sloping cover.
- With shock absorption.
- Hollow flap for (continuous) closing pressure adjustment.
- Flap valve with damping unit for installation in pump pressure lines.
Individual sizes are available on request.
Here are some common types of steel flap valves:
1. Check flap valves: allow flow in one direction, preventing backflow.
2. Isolation flap valves: used to isolate sections of pipeline for maintenance.
3. Regulating flap valves: control flow rate or pressure.
4. Spring-loaded flap valves: use a spring to assist opening or closing.
5. Weighted flap valves: use a weight to assist closing.
6. Pneumatic flap valves: air-operated for remote control.
7. Hydraulic flap valves: fluid-operated for high-pressure applications.
Testing Specifications for Flap Gate Valves- Hydrostatic Testing:
– Shell test: 1.5 times the maximum working pressure
– Seat test: 1.1 times the maximum working pressure
– Pneumatic Testing:
– 1.1 times the maximum working pressure (air or gas)
– Material Testing:
– Chemical composition analysis (e.g., spectroscopy)
– Mechanical property testing (e.g., tensile, hardness)
– Non-Destructive Testing (NDT):
– Radiography (X-ray or gamma ray)
– Ultrasonic testing (UT)
– Magnetic particle testing (MT)
– Dye penetrant testing (DPT)
– Functional Testing:
– Valve operation (opening, closing, leakage)
– Pressure drop testing
– Certification:
– API, ASME, or ISO certification
– Material certificates (e.g., EN 10204 3.1)
These specifications may vary depending on the application, industry, and regulatory requirements.
PetroSan Manufacturers of Flap gate valves in below grades :
A36 steel Circular Flap Valve manufacturer
A36 Tidal Flap Valve manufacturer
A36 Flange mounted Flap Valve manufacturer
A36 Ductile Iron Flap Valve manufacturer
A36 Pipe Push fit Flap Valve manufacturer

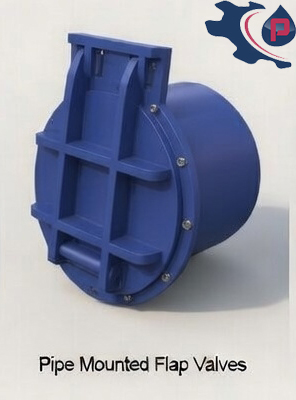

A36 Pipe mounted Flap Valve manufacturer

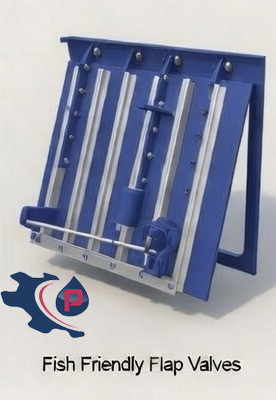

A36 Fish friendly Flap Valve manufacturer

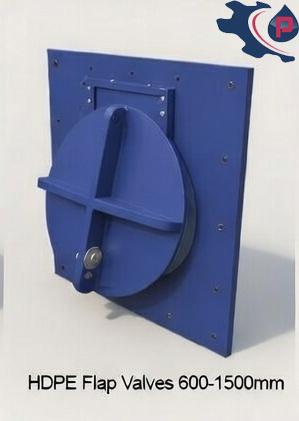

HDPE Flap Valve manufacturer
A516 Gr. 70 Circular Flap Valve manufacturer
A516 Gr. 70 Tidal Flap Valve manufacturer
A516 Gr. 70 Flange mounted Flap Valve manufacturer
A516 Gr. 70 Ductile Iron Flap Valve manufacturer
A516 Gr. 70 Pipe Push fit Flap Valve manufacturer
A516 Gr. 70 Pipe mounted Flap Valve manufacturer
A516 Gr. 70 Fish friendly Flap Valve manufacturer

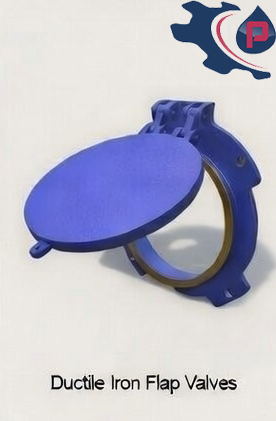

Ductile Iron Circular Flap Valve manufacturer
Ductile Iron Tidal Flap Valve manufacturer
Ductile Iron Flange mounted Flap Valve manufacturer
Ductile Iron Ductile Iron Flap Valve manufacturer
Ductile Iron Pipe Push fit Flap Valve manufacturer
Ductile Iron Pipe mounted Flap Valve manufacturer
Ductile Iron Fish friendly Flap Valve manufacturer.
Manufacturer of Flap Valve for Drain pipe, Manufacturer of Waterman Flap Valve, Manufacturer of Flap Valve manufacturers in India, Manufacturer of Flap valve mechanism, Manufacturer of Pipe Flap Valve, Manufacturer of Clow flap valve, Manufacturer of Flap valve cost, Manufacturer of 4 Flap valve, Manufacturer of Check flap valves, Manufacturer of Isolation flap valves, Manufacturer of Regulating flap valves, Manufacturer of Spring-loaded flap valves, Manufacturer of Weighted flap valves, Manufacturer of Pneumatic flap valves, Manufacturer of Hydraulic flap valves.
